You need to know what the 2026 Ontario Building Code requires for basement waterproofing so your project stays legal and dry.
The updated code requires waterproofing where hydrostatic pressure or higher exterior ground levels threaten below‑grade walls and floors, so plan materials and methods that meet those rules before you start.
Follow the code closely and you avoid costly rework, failed inspections, and moisture problems that can ruin finishes.
This post walks you through what the code expects, common waterproofing options that comply, and simple maintenance steps to keep your basement dry and up to standard.
Key Takeaways
- Know when waterproofing is mandatory under the 2026 code.
- Choose systems and materials that meet code requirements.
- Maintain and inspect waterproofing to preserve compliance and performance.
Ontario Building Code Requirements for Basement Waterproofing 2026
You must address hydrostatic pressure, exterior grade relative to interior, and required materials and methods.
Your work will need documented details, tested products, and municipal sign-off where applicable.
Key Code Updates for 2026
The 2026 Ontario Building Code (OBC) tightened rules about when waterproofing is required.
If exterior ground is higher than the inside floor or hydrostatic pressure is likely, the OBC now requires applied waterproofing to exterior below‑grade walls and floors.
That applies to existing renovations when you alter the foundation or lower the basement slab.
The Code also clarifies expectations for product performance and installation.
You must use materials rated for hydrostatic conditions and follow manufacturer directions.
Municipal officials can require proof such as product data sheets, installation photos, or third‑party test results.
Applicable Standards and Regulations
The OBC cites Part 9 for typical residential foundations and references material standards for membranes, drainage boards, and sealants.
You must follow CSA and ASTM test standards when selecting membranes and drainage systems.
Products should list compliance or lab test references on their technical data sheet.
Local bylaws and the Building Code Act still govern enforcement.
Contact your municipal building department for site‑specific rules, permit requirements, and inspection triggers.
Keep records: permits, product data sheets, installation receipts, and inspection reports.
These documents help show compliance during sale or audit.
Compliance Procedures
Start with a site assessment that documents exterior grade, groundwater conditions, and signs of hydrostatic pressure.
If the assessment shows risk, include waterproofing details on permit drawings: membrane type, drain tile location, sump pump specs, and backfill/soil requirements.
During work, follow manufacturer installation steps and keep photos dated and geotagged.
Arrange municipal inspections at foundation exposure and final stages.
If you use alternative methods (e.g., internal drainage systems), provide performance data and a professional letter confirming equivalence.
Keep warranty and maintenance instructions for the homeowner and for future inspections.

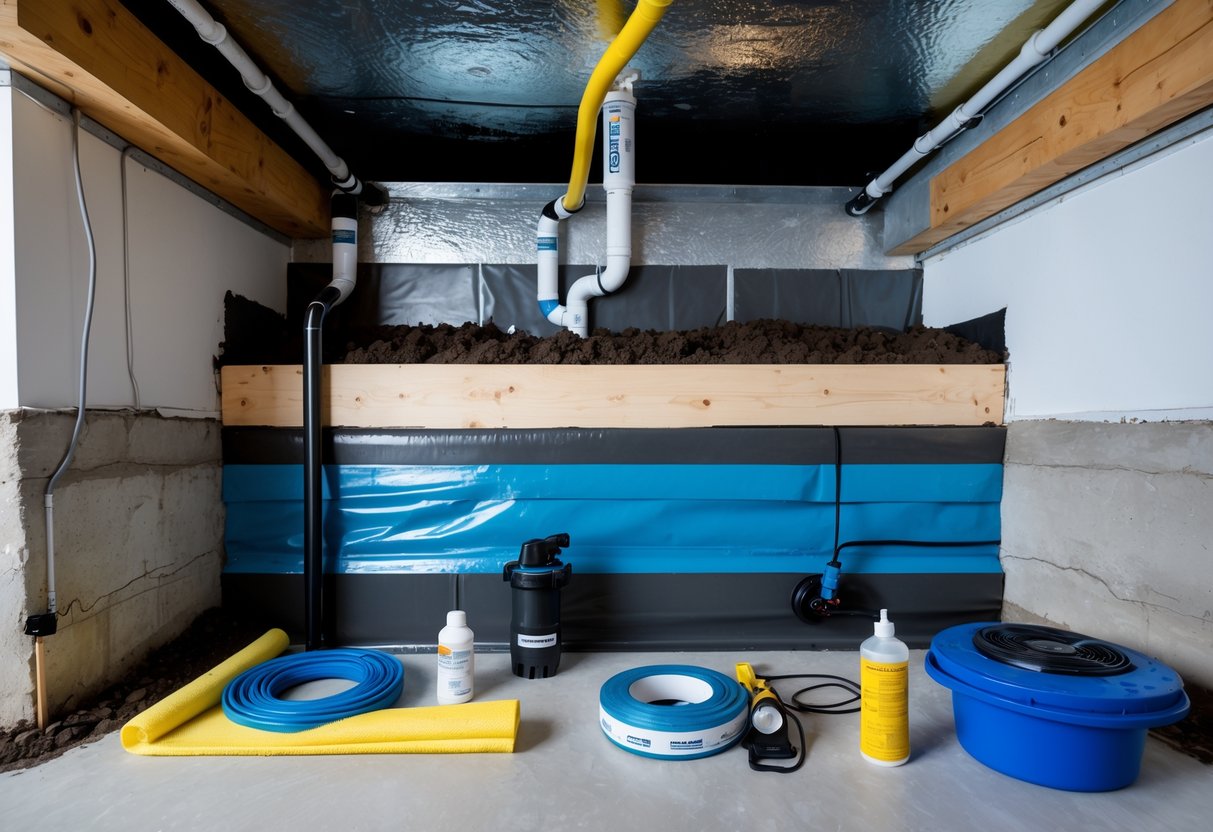

Types of Basement Waterproofing Systems
You need to pick methods that match your foundation type, site conditions, and budget.
The main choices are external barriers, internal fixes, and systems that move water away from the foundation.
Exterior Waterproofing Methods
Exterior waterproofing stops water before it reaches your foundation wall.
Contractors excavate around the footing, repair cracks, and apply a membrane or liquid-applied barrier to the outside of the wall.
They often add rigid insulation over the membrane for thermal protection and to reduce freeze-thaw damage.
Most jobs include installing a drainage board or protection board to prevent backfill damage to the membrane.
If hydrostatic pressure is present, installers will place a footing drain (perimeter drain) at the base of the foundation before backfilling.
Exterior work is more invasive and higher cost, but it addresses the source of water.
Benefits you can expect: long-term protection for poured or block foundations, reduced interior moisture, and fewer recurring repairs.
Drawbacks include landscaping removal, higher contractor time, and the need to work around utilities.

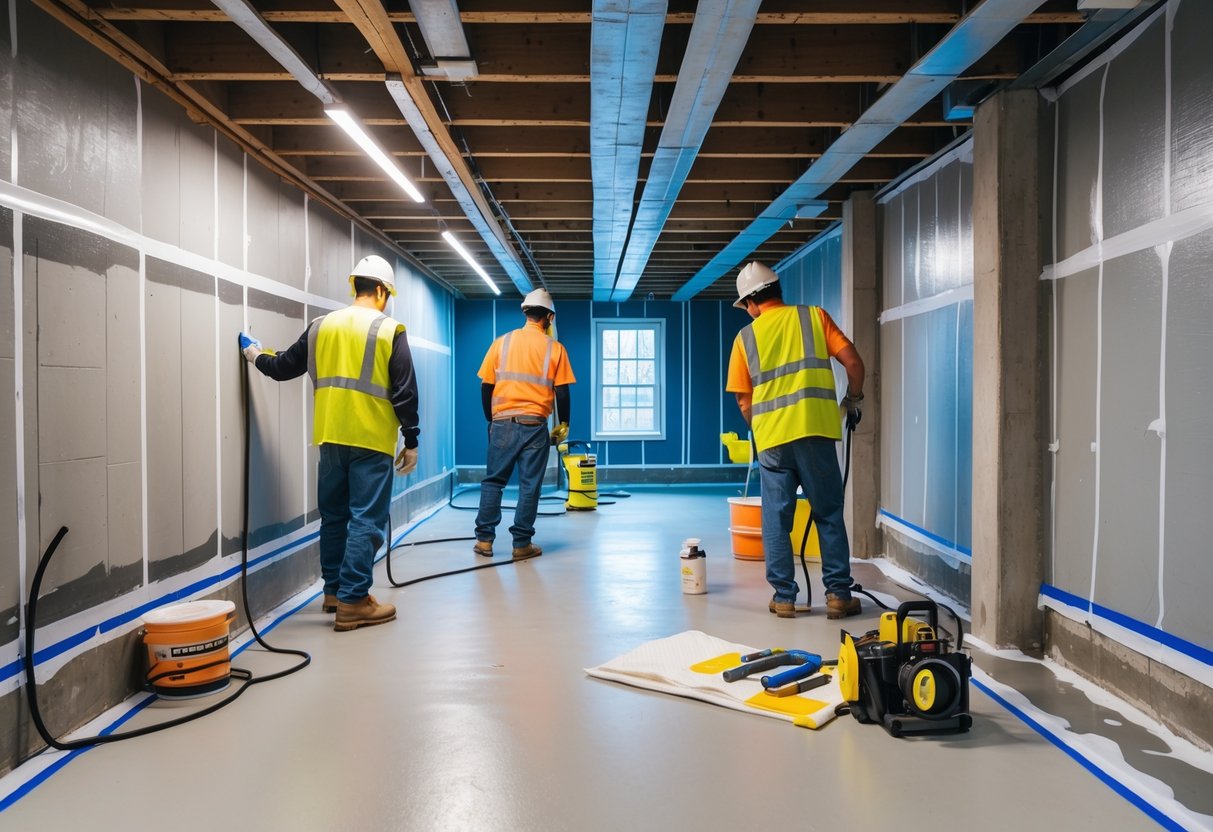

Interior Waterproofing Solutions
Interior methods control water that has already entered or may enter your basement.
Common options include interior membrane systems, crack injection (epoxy or polyurethane), and cementitious coatings applied to wall and floor joints.
Interior systems often pair with an internal drainage channel and a sump pump to manage water at the base of the wall.
These solutions are less disruptive to landscaping and are typically faster and cheaper than exterior methods.
They work well when exterior excavation isn’t practical or when you need a quick remedial fix.
Limitations: interior treatments do not stop water at the source, so they may require ongoing sump maintenance.
Choose materials rated for below-grade use and have contractors confirm compliance with the Ontario Building Code when hydrostatic conditions exist.
Drainage Systems
Drainage systems move water away from the foundation and reduce hydrostatic pressure.
Key components include exterior perimeter drains (French drains), interior perimeter channels, sub-slab drains, and a properly sized sump pump with a battery backup and high-water alarm.
Install exterior perimeter drains at the footing level when excavating for exterior waterproofing.
For interior systems, recessed channels collect water and route it to a sump pit.
Sub-slab drains, used under concrete slabs, require careful installation to avoid undermining the slab.
Maintenance matters: inspect and clean gutters, downspouts, and exterior drains yearly.
Test the sump pump and backup system seasonally.
Proper grading, extending downspouts at least 1.5–2 metres from the foundation, and keeping weeping tile clear help the drainage system perform as intended.
Materials Approved Under the Ontario Building Code
You must choose materials that meet the Ontario Building Code for durability, water control, and proven performance.
Focus on product listings, manufacturer data sheets, and municipal acceptance when selecting materials.

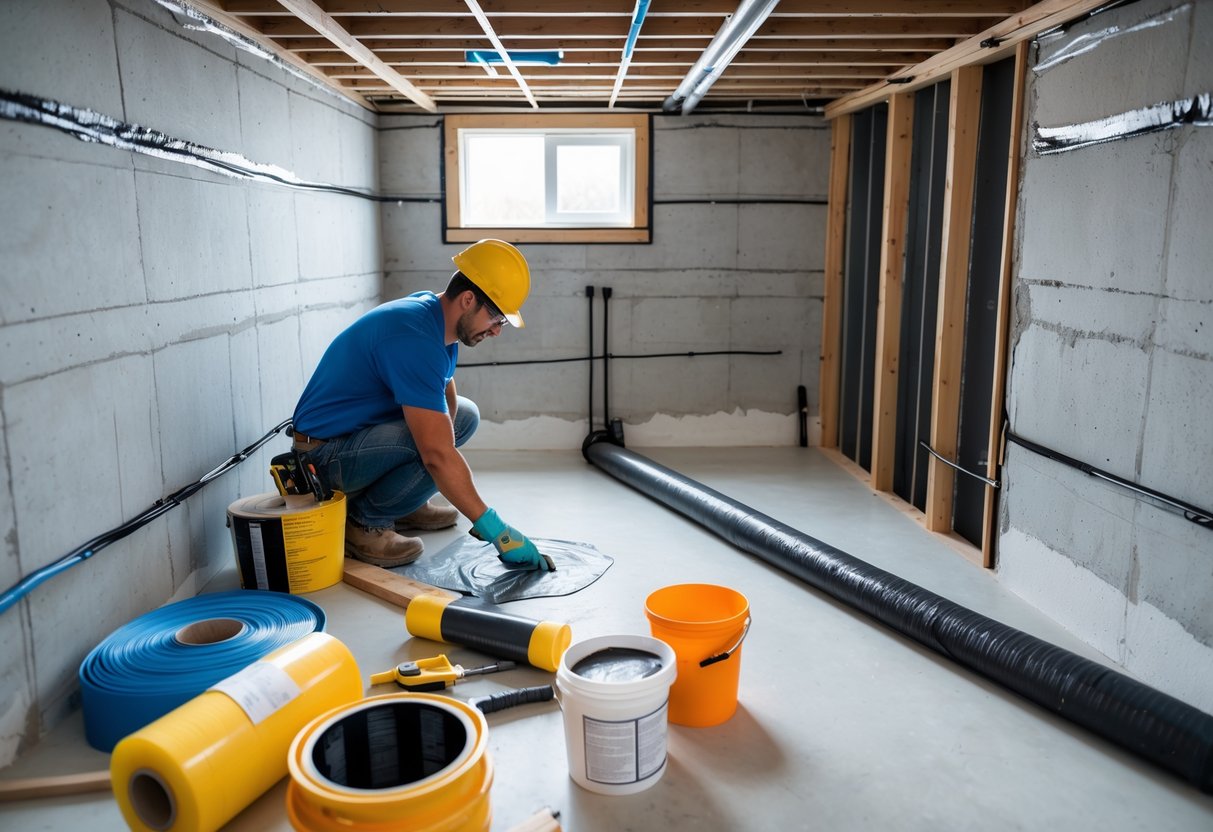

Membranes and Sealants
You should use membranes that are listed for below-grade use and show a valid evaluation report or certification accepted in Ontario.
Common approved types include self-adhesive bituminous membranes, sheet-applied thermoplastic membranes (TPO/PVC variations for foundations), and composite membranes with protective geotextiles.
Look for products tested for water vapour transmission, puncture resistance, and long-term adhesion to concrete.
Use sealants rated for concrete-to-membrane joints and cold-weather application.
Polyurethane and MS polymer sealants are often accepted when labelled for foundation movement and hydrostatic pressure.
Make sure the manufacturer provides joint detail drawings and compatibility data for coatings or membranes you pair with the sealant.
Waterproofing Coatings
Liquid-applied membranes must have a proven history for below-grade applications and come with a manufacturer’s system warranty.
Approved options include cementitious crystalline coatings for minor seepage control and elastomeric polyurea or polyurethane coatings for seamless protection.
Confirm that the coating adheres to damp concrete if you expect moisture during application.
Follow manufacturer instructions for primer, thickness (wet-film and dry-film), number of coats, and cure time.
Check that the coating resists hydrostatic pressure and freeze–thaw cycles typical in Ontario.
Keep product data sheets and application records for municipal inspections.
Foundation Drain Materials
Your foundation drain system must use materials shown to carry water away from the footing efficiently.
Approved components include perforated PVC or corrugated HDPE drain pipe, wrapped in non-woven geotextile to prevent clogging, and granular filter material such as washed 6 mm to 20 mm clear stone.
Rigid pipe with external filter socks is acceptable where specified by the manufacturer.
Install drainage at the footing level, slope pipe toward an approved outlet, and protect it from sediment ingress.
For high groundwater areas, use drains rated for crushing strength and ensure positive drainage to a sump pit or municipal storm system per local bylaws.
Keep manufacturer installation instructions and product certifications on site for inspection.
Inspection and Maintenance for Code Compliance
You must check waterproofing systems regularly and keep clear records of inspections, repairs, and maintenance work.
Focus on visible damage, drainage function, and any work that required a permit.
Inspection Protocols
Schedule inspections at least twice a year and after major storms or freeze–thaw cycles.
Check exterior grading around the foundation; the ground should slope away from your house at least 50 mm over the first metre.
Inspect exterior cladding and foundation walls for cracks, spalling, or missing sealant.
Inside, look for new damp spots, efflorescence, mould, or peeling paint on below‑grade walls and floors.
Test sump pumps monthly during wet seasons and run the backup power system to confirm it activates.
Verify that interior floor drains are clear and that perimeter drain outlets are discharging away from the foundation.
Record date, findings, and any photos.
If you spot structural movement, persistent water entry, or signs of hydrostatic pressure, contact a licensed contractor and your municipality if a building permit might be required.
Preventative Maintenance Practices
Keep eavestroughs and downspouts clear and extend downspouts at least 1.5 m from the foundation or into a storm sewer.
Maintain exterior grading and top up soil where settlement creates low spots.
Replace failed weeping tile or membrane systems promptly; small fixes delay larger, costlier repairs.
Service sump pumps annually: clean the basin, test the float, and swap the pump if it shows irregular operation.
Re‑seal basement windows and through‑wall penetrations with approved sealants.
Keep a maintenance log that lists dates, actions taken, invoices, and permit numbers.
This documentation helps show compliance during municipal inspections and can protect you at resale.
Common Challenges and Solutions in Basement Waterproofing
You will face two main challenges: moisture entering through walls or floors, and changing groundwater levels that stress drainage systems and barriers.
Fixes combine proper drains, reliable pumps, and repairs to cracks and joints.
Addressing Moisture Intrusion
Identify the source first: look for damp spots, efflorescence, musty odours, or peeling paint.
Surface sealants can stop minor dampness, but you should not rely on them for active leaks.
Use an interior drainage system when water seeps through walls or floor joints.
Install a perimeter drain and channel it to a sump pit with a battery-backed pump.
That setup removes water before it reaches living space.
Repair foundation cracks with epoxy or polyurethane injections depending on movement.
Replace failed window wells and ensure grading slopes away from the foundation at least 150 mm over the first 1.5 m.
Maintain gutters and downspouts so runoff discharges at least 1.5 m from the foundation.
Regularly check your sump pump, test the float, and clear the drainage path to prevent backups.
Dealing with Water Table Variability
High or fluctuating water tables raise hydrostatic pressure against foundations.
Pressure can force water through tiny gaps and floor joints, so you must manage both exterior and interior controls.
If your property sits on a high water table, consider exterior waterproofing membranes combined with an exterior weeping tile to lower pressure.
For renovations where excavation is impractical, use interior drainage with a high-capacity sump pump and a backup power source.
Monitor seasonal changes and heavy-rain events.
Install a discharge line with a clear-away path or a daylight outlet that prevents water from pooling near the foundation.
Add a backflow prevention device if municipal sewer surcharge is possible.
Test the system after installation by running water tests or hiring a pro to perform a hydrostatic check.
Regular inspections catch early signs of failure so you can replace worn membranes, pumps, or tiles before major damage occurs.
Frequently Asked Questions
These answers cover specific 2026 code points: where membranes are required, inspection timing, material guidance, insulation links, and how egress windows change waterproofing details.
You’ll get clear rules, measurement changes, and what an inspector will look for.
What are the updated waterproofing requirements for basement construction in Ontario as of 2026?
The 2026 guidance keeps waterproofing at below‑grade foundation walls and concrete slabs as mandatory when the assembly is exposed to ground moisture or water. You must provide a continuous system that prevents water entry to finished spaces.
You must also follow drainage and backfill requirements. Any excavation or structural repair needs a permit and plan review by the municipality.
How has the minimum waterproofing membrane thickness changed in the recent building code revisions?
The code now lists specific thicknesses or performance criteria rather than a single prescriptive number in some cases. Manufacturers’ tested performance values and compliance with referenced standards can be accepted instead of only thickness.
Use membranes with documented test data that meet or exceed the code’s performance criteria. Keep product data and installation instructions on site for inspection.
Are there any new insulation requirements in conjunction with basement waterproofing methods?
The code links insulation placement to the chosen water‑control strategy. Rigid insulation can be placed outside the waterproofing on new foundations where the system and backfill protect it, or inside with a proper vapour/air control layer when exterior application isn’t practical.
You must ensure insulation and waterproofing are compatible. Neither layer should be damaged during construction or by moisture over time.
What are the mandated inspection protocols for waterproofing before basement finishing?
Inspectors expect to see waterproofing and drainage completed and visible before any interior finishes go in. That includes membrane application, drainage board or board protection, perimeter drains, and proof of slope and backfill.
Have product data, manufacturer installation instructions, and permit drawings on site. If underpinning, excavation or structural repairs were done, the city will perform a plan review and staged inspections.
Does the Ontario building code specify preferred materials for exterior basement waterproofing?
The code does not force one material type. It refers to acceptable methods and standards, such as liquid applied membranes, sheet membranes, or drained systems, provided they meet performance requirements and proper installation practices.
Choose materials with proven performance, manufacturer instructions, and testing data. Ensure installers follow the product instructions and keep records for the inspection.
How do egress window requirements affect basement waterproofing standards in Ontario?
Egress windows require openings through the foundation wall, which change flashing and water‑management details at the opening.
You must integrate waterproofing, window well drains, and proper sealing so the egress does not become a water entry point.
Follow the code for egress size and means of escape.
Also install drainage and weeping systems at the sill and well to channel water away from the foundation.
