External, Exterior & Outside Basement Waterproofing

Exterior basement waterproofing (also known as outside basement waterproofing) is the most effective, long-term solution for preventing water intrusion. Unlike interior fixes that manage water after it enters, this method stops water at the source, before it ever touches your foundation walls.

By creating a physical barrier on the outside of your home, exterior waterproofing prevents the concrete from absorbing moisture, which eliminates the risk of structural deterioration, mold, and basement flooding. If you are dealing with persistent basement water leakage repair needs or high hydrostatic pressure, an external basement waterproofing system is a mechanical necessity for a dry, healthy home.

Recognizing the symptoms of foundation failure early can save you thousands in structural repairs. You likely need foundation exterior waterproofing if you notice:

• Persistent Wall Dampness: Walls that feel cold or damp to the touch, even without visible standing water.
• Visible Foundation Cracks: Vertical or horizontal fissures that allow water to seep through during heavy rain.
• Efflorescence: A white, chalky mineral residue on your basement walls, signaling that water is migrating through the concrete.
• Recurring Basement Flooding: If your basement floods every time there is a major thaw or storm, your current drainage is overwhelmed.
• Bowing or Tilting Walls: These are signs of extreme hydrostatic pressure from the outside soil, which external waterproofing is designed to relieve.
• Musty Odors and Mold: A “basement smell” usually indicates that moisture is trapped behind the walls, even if you can’t see the leak.

Our basement waterproofing company uses a rigorous, 11-step process to ensure your foundation remains bone-dry for decades.

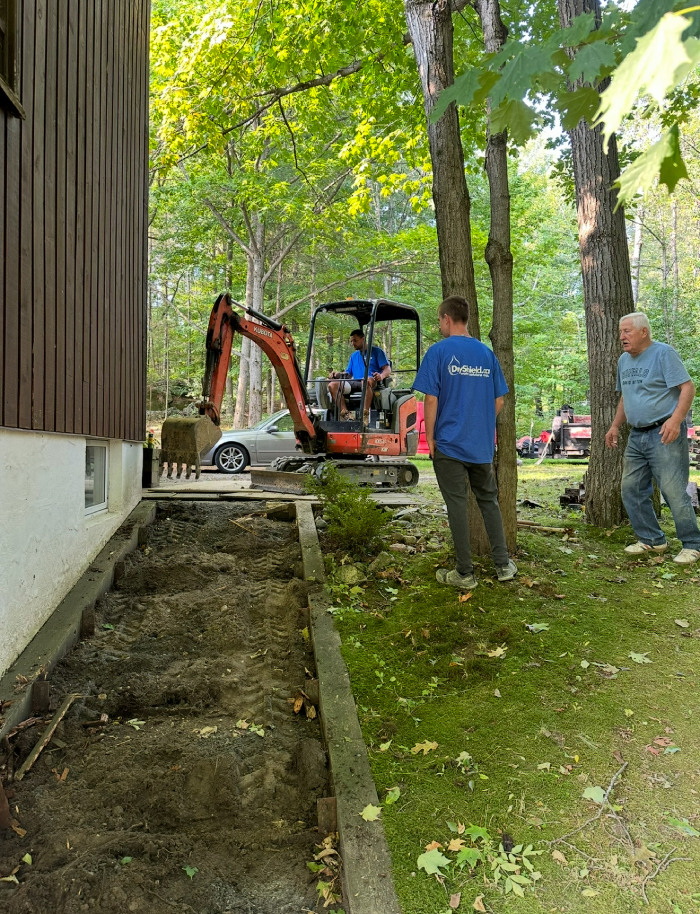

1. Excavation: We excavate down to the footing of the house to expose the entire foundation wall.
2. Cleaning & Inspection: The wall is power-washed and inspected for structural defects.
3. Foundation Crack Repair: We seal all fissures using specialized hydraulic cement or high-pressure injections.

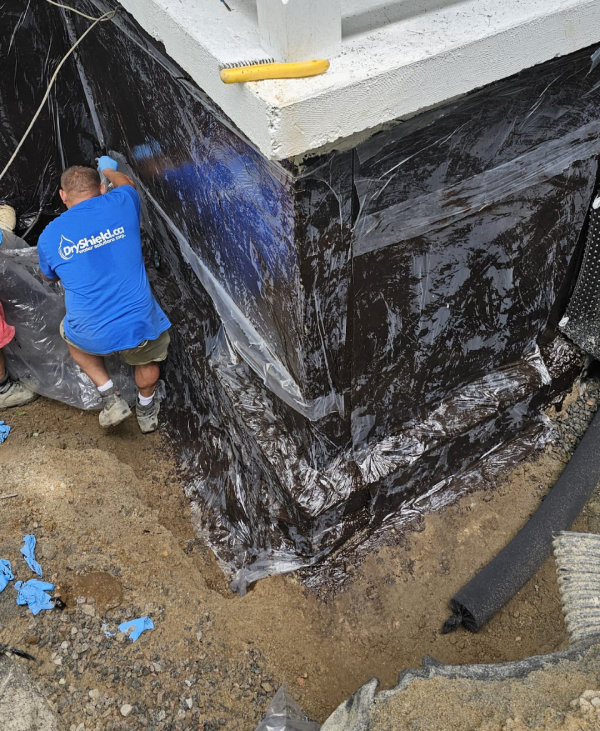

4. Waterproof Membrane: A seamless, flexible rubberized membrane is applied to block all water penetration.
5. Reinforcement: A mesh or fabric layer is embedded into the membrane for added durability.
6. Drainage Board: A dimpled board is installed to create an air gap, allowing water to fall straight to the drainage system.
7. Weeping Tile Installation: We replace or install new perforated pipes (French drains) to channel water away.
8. Gravel Bedding: The drainage system is covered with clear gravel to prevent soil from clogging the pipes.
9. Filter Fabric: A geotextile layer is added to ensure only water enters the drainage system, not silt.
10. Backfilling & Grading: Soil is replaced and sloped away from the foundation to prevent pooling.
11. Final Cleanup: Your property is restored to its original condition.

Choosing external basement waterproofing provides long-term benefits that interior systems simply cannot match. It is a complete waterproof foundation solution designed to protect your home for decades.

Eliminating Hydrostatic Pressure

Hydrostatic pressure is the force exerted by water-saturated soil against your foundation. This pressure is strong enough to buckle concrete walls. While interior systems drain water after it enters, external waterproofing uses dimpled drainage boards to relieve this pressure entirely, directing the water to the drainage system before it can push against the structure.

Protecting Concrete Longevity

Concrete is porous. When it remains in contact with wet soil, it undergoes a “freeze-thaw” cycle that causes the material to flake and weaken (spalling). Exterior waterproofing keeps the concrete dry, preventing structural decay and ensuring the skeleton of your home remains strong.

Advanced System Components

To achieve the best results in external basement waterproofing, we utilize high-performance materials that go beyond standard building codes:

• Polymer-Modified Membranes: Unlike traditional tar, these membranes remain flexible in freezing temperatures, meaning they won’t crack as your foundation naturally shifts.
• Dimpled Air-Gap Membranes: These boards act as a “second skin.” If any moisture gets past the initial soil, the dimples create a vertical channel that allows water to drop immediately to the weeping tiles.
• Geotextile Filter Fabrics: We wrap our drainage stone and weeping tiles in heavy-duty filter fabric. This prevents fine silt and clay from “silting up” your drainage system, which is the number one cause of long-term waterproofing failure.

The cost of external waterproofing reflects its comprehensive nature and the labor involved in excavation.

Factors Affecting Your Investment:

• Depth of Foundation: Deeper basements require more extensive excavation.
• Accessibility: Obstructions like decks, porches, or narrow spaces between houses can increase labor time.
• Soil Condition: Heavy clay or rocky soil requires more effort to excavate and backfill.

When it comes to exterior waterproofing, the quality of the installation determines the life of your home.

• 25+ Years of Industry Leadership: We have protected thousands of homes with our external basement waterproofing systems.
• BBB Accredited & Award-Winning: Our commitment to transparency and quality has earned us top ratings and industry accolades.
• Lifetime Transferable Warranty: We don’t just fix the problem; we guarantee it for the life of the structure.
• Fully Licensed & Insured: Every technician is a specialist in foundation exterior waterproofing, providing you with peace of mind.
• Advanced Technology: We use industry-leading membranes and drainage boards that far exceed standard building codes.

For a complete home protection strategy, consider these related services:

• Interior Basement Waterproofing: Best for managing minor leaks without excavation.
• Sump Pump Installation: The mechanical “heart” of your basement’s drainage system.
• Crawl Space Encapsulation: Prevents moisture and mold in non-basement areas.
• Foundation Crack Repair: Targeted solutions for structural wall failures.

Reviewed by: Jonathan McMahon Senior Waterproofing Technician, Dryshield Basement Waterproofing
Experience: 25+ years external waterproofing and outside basement waterproofing in Toronto and the GTA
