Commercial parking garage crack injection is a specialized structural maintenance procedure used to seal fissures in reinforced concrete slabs and foundation walls. By utilizing high-pressure polyurethane or epoxy resins, this process prevents water and chloride infiltration, stopping rebar corrosion and concrete spalling. This non-invasive repair extends the service life of parking structures while maintaining operational capacity.
Why Parking Garage Cracks Require Immediate Intervention
In the Toronto climate, parking structures face extreme thermal cycling and heavy chloride exposure from de-icing salts. Left untreated, a simple crack becomes a “highway” for salt-laden water to reach the internal rebar.
- Rebar Oxidation: Once moisture reaches the steel, it oxidizes and expands, exerting internal pressure that leads to concrete spalling.
- Structural Liability: Leaking ceilings in underground decks can damage tenant vehicles and create slip-and-fall hazards.
- Asset Depreciation: Unaddressed leaks significantly reduce the structural life and resale value of commercial real estate.
| Maintenance Challenge | Injection Material | Primary Technical Benefit |
|---|---|---|
| Active Water Leaks | Hydrophilic Polyurethane | Expands up to 20x to stop flowing water; remains flexible. |
| Structural Fissures | High-Modulus Epoxy | Restores monolithic strength; higher tensile strength than concrete. |
| Dynamic Joint Movement | Chemical Grout Gels | Engineered for high-vibration areas and expansion joints. |
| Corrosion Prevention | Migrating Inhibitors | Applied during injection to protect rebar from chloride salt. |
Our 5-Step High-Pressure Injection Process
Site Diagnostic: We assess if the crack is “live” (moving) or “static” to select the optimal resin viscosity.

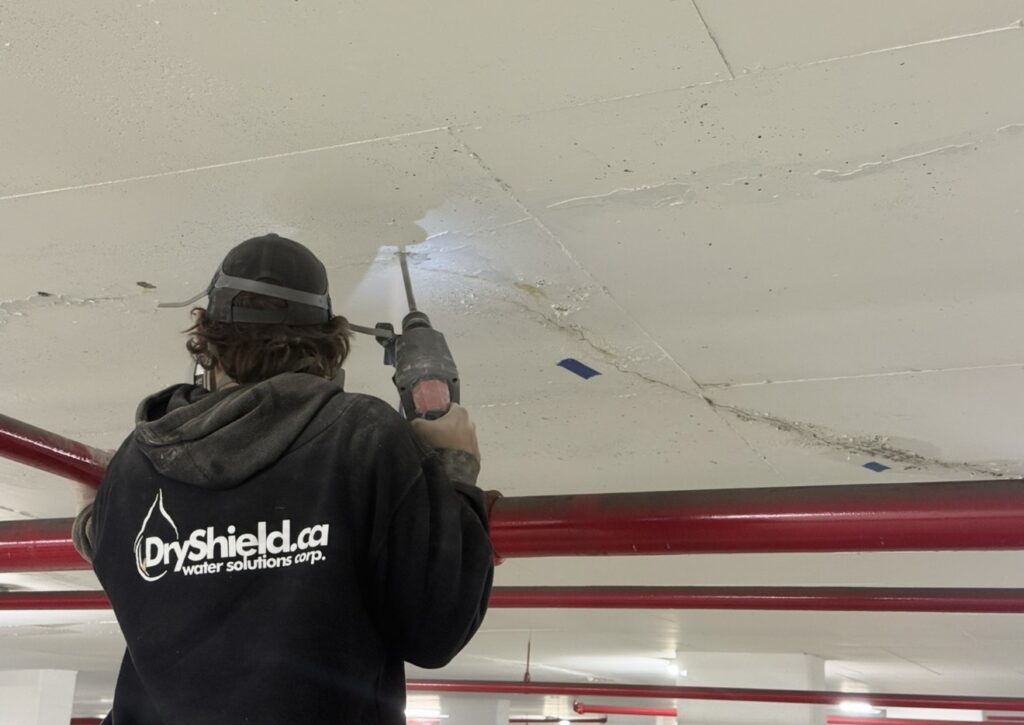

Packer Installation: Mechanical injection ports are drilled at a 45-degree angle to intercept the crack mid-slab.
Pressure Flushing: We remove debris and salt deposits to ensure maximum adhesion of the injection material.
Sequential Injection: Utilizing dual-component pumps, we inject from the lowest point up to ensure zero air pockets.
Quality Verification: Once cured, ports are removed and the surface is finished with high-strength repair mortar.
Why Parking Garage Cracks are a Structural Emergency
In the GTA, parking structures face a unique threat: Chloride-Induced Corrosion. Unlike residential basements, garage slabs are exposed to thousands of pounds of road salt (Sodium Chloride) tracked in by vehicles every winter.
The “Highway” to Rebar Failure
When salt dissolves in water and enters a fissure, it migrates toward the internal steel reinforcement (rebar).
Chloride Infiltration: Once chloride ions reach the steel, they destroy the rebar’s natural “passive” protective layer.
Oxidation & Expansion: The steel begins to rust and expand—up to 8 times its original volume.
Concrete Spalling: This internal pressure causes the concrete to “spall” (burst), leading to chunks of the ceiling or floor falling away.
Dynamic vs. Static Fissures: Selecting the Right Solution
Not all cracks are created equal. Our engineering approach differentiates between two primary types to ensure a permanent fix:
1. Static Cracks (Structural Bonding)
These are “dead” cracks caused by initial settling. We utilize High-Modulus Structural Epoxy to “weld” the concrete back together. This restores the slab’s monolithic strength, making the repaired area stronger than the original concrete.
2. Dynamic Cracks (Vibration & Thermal Movement)
Parking garages “breathe” due to vehicle vibration and Toronto’s -30°C to +30°C temperature swings. For these “live” cracks, we use Flexible Polyurethane Chemical Grout. This material acts as a high-pressure gasket, expanding to fill the void while remaining flexible enough to move with the building.
Beyond the Leak: Managing Property Risk
For REITs and Facility Managers, a leaking crack is more than a maintenance issue—it is a legal and financial liability.
Slip and Fall Mitigation: Leaks in underground decks create ice patches in winter and oily, slick surfaces in summer.
Vehicle Damage Claims: Water dripping through cracks often carries “calcium sweat” (leached lime), which can permanently etch a tenant’s vehicle paint.
Asset Value Preservation: Proactive concrete crack injection costs a fraction of a full-scale slab replacement. By sealing fissures early, you defer multimillion-dollar capital expenditures and protect the building’s appraisal value.
Sealing Foundation & Retaining Wall Seepage
Vertical wall cracks in parking structures are often the first sign of a failing exterior waterproof membrane. Unlike floor slabs, walls deal with lateral soil pressure and “perched” water tables.
The “Grid Pattern” Area Injection
When a wall shows widespread weeping or “sweating” rather than a single distinct crack, we use Area (Curtain) Injection.
The Method: We drill a grid of ports through the wall and inject hydrophilic acrylate gels or low-viscosity polyurethanes directly into the soil-to-wall interface.
The Result: This creates a new, waterproof “curtain” on the exterior of the building without ever turning a shovel of dirt outside.
Retaining Wall & Bumper Wall Repair
Parking garage walls often sustain “impact cracks” from vehicle collisions. These structural fissures must be addressed with High-Pressure Epoxy Crack Injection to ensure the retaining wall can still support the lateral load of the earth behind it.
Identifying Wall Distress
Warning Signs on Parking Garage Walls
Efflorescence “Stalactites”: If you see white, fuzzy salt deposits forming “icicles” on the wall, water is actively leaching minerals out of your concrete.
Rust Streaks from Tie-Holes: In many Toronto garages, the original “form-tie” holes (used during construction) begin to leak. Orange streaks indicate the internal metal ties are rotting.
Parging Flaking: If the gray “plaster” coat on the wall is peeling, moisture is trapped behind it, building pressure that will eventually cause a larger blowout.
Call us now for a free estimate at 1-800-277-5411 or visit our home page for all our services here for: Basement Waterproofing
Frequently Asked Questions
How much does commercial parking garage crack injection cost in 2026?
In 2026, the average cost for commercial crack injection in the GTA ranges from $1,000 to $2,500 per site, depending on material volume and ceiling height. Proactive maintenance programs for multi-level structures significantly reduce the per-unit cost compared to emergency repairs.
Can the garage remain operational during the injection?
Yes. Unlike exterior excavation, high-pressure injection is a localized, interior-entry repair. Work zones can be phased lane-by-lane, ensuring your facility remains open to tenants and visitors throughout the process.
Does crack injection stop “leaking ceilings” onto cars?
Absolutely. By injecting specialized polyurethane grouts, we seal ceiling fissures from the underside. This stops water from dripping onto vehicles, preventing both structural degradation and property damage claims.
What standards do these repairs follow?
All Dryshield commercial repairs comply with the Ontario Building Code, CSA S413 (Parking Structures), and ICRI (International Concrete Repair Institute) standards for structural concrete restoration.
Can you perform injections on “Expansion Joints”?
Yes, but they require specialized Acrylate Gels or high-flexibility chemical grouts. Because expansion joints are designed for extreme movement, we do not use rigid epoxy. Our injection process ensures the joint remains watertight while maintaining its 100% range of motion.
What is “Delamination” and can injection fix it?
Delamination occurs when the top layer of concrete separates from the rebar (often indicated by a “hollow” sound). While injection is perfect for vertical or through-slab cracks, delaminated areas may require “gravity-fed” resins or partial-depth repairs to restabilize the surface.
Does the injection process require a “Hot Work” permit?
No. High-pressure concrete crack injection is a cold-process repair. There is no spark, flame, or high heat involved, making it safe for use in occupied parking structures and near fuel-storage areas without special fire-watch requirements.
How do you handle leaks around pipes or electrical conduits in garage walls?
Penetrations are high-risk leak points. We use mechanical packers and high-expansion polyurethane foam to create a compressed gasket around the pipe or conduit. This stops “annular space” leaks permanently while allowing for minor vibration from the building’s mechanical systems.
What is the difference between crack injection and curtain grouting?
Crack injection is a localized repair for a single fissure. Curtain grouting is a comprehensive solution where resin is injected through the wall to create a waterproof barrier on the exterior (soil side). Curtain grouting is the gold standard for walls with multiple leaks or failed exterior membranes.
